FORGED RING

• Application
• Other, Chemical processing, Pollution control, Power generation, Petrochemical industry, Oil and gas industry, Marine engineering, Flue gas desulfurization systems

• Chemical Composition
• Nickel (Min 57%), Molybdenum (15-17%), Chromium (14.5-16.5%), Iron (4-7%), Tungsten (3-4.5%), Cobalt (Max 2.5%), Manganese (Max 1%), Silicon (Max 0.08%), Carbon (Max 0.01%), Vanadium (Max 0.35%), Phosphorus (Max 0.04%), Sulfur (Max 0.03%)

• Coating Type
• None (bare forged)

• Color
• Metallic grey/silver

• Composition
• Nickel-base superalloy

• Corrosion Resistant
• Excellent resistance to oxidizing and reducing acids, chloride-induced pitting and crevice corrosion

• Diameter
• Custom as per customer specification

• Dimension (L*W*H)
• Custom sizes as required

• Finish Type
• Forged/Machined

• Grade
• Hastelloy C276

• Hardness
• 87 HRB (Brinell)

• Heat Resistance
• Yes

• Material Composition %
• Ni (Min 57%), Mo (15-17%), Cr (14.5-16.5%), Fe (4-7%), W (3-4.5%)

• Material Grade
• C276

• Product Form
• Forged Ring

• Product Name

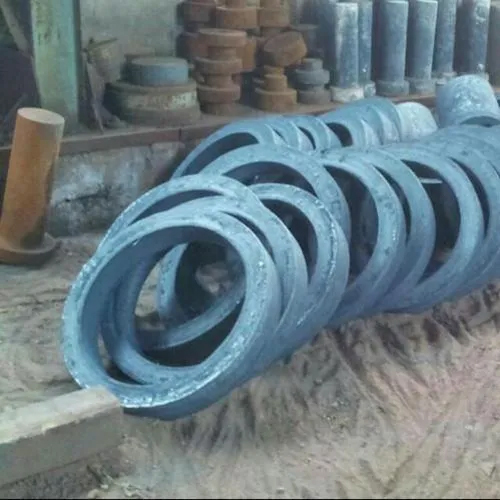

• Other, Hastelloy C276 Forge Ring

• Recyclable
• Yes

• Shape
• Other, Ring

• Size
• Standard or custom sizes available

• Steel Product Type
• Other, Forged Ring

• Steel Standard
• Other, ASTM B564, ASME SB564

• Steel Type
• Other, Nickel-Molybdenum-Chromium Alloy

• Surface
• Hot forged, machined or custom finish

• Temper
• Annealed

• Tensile Strength
• 785 MPa (min)

• Thickness
• As per order specification

• Usage
• Used in reactors, heat exchangers, columns, pressure vessels

• Weight
• Varies as per dimension

• Width
• Custom as per requirement

• Application
• Other, Automotive, Power Generation, Oil & Gas, Chemical Processing, Aerospace, Heavy Engineering

• Chemical Composition
• Cr 16.0-18.0%, Ni 10.0-14.0%, Mo 2.0-3.0%, C 0.03%, Mn 2.0%, Si 1.0%, P 0.045%, S 0.03%, Fe Balance

• Coating Type
• Uncoated or as requested

• Color
• Silver/Grey

• Composition
• Low Carbon Stainless Steel

• Corrosion Resistant
• Excellent, especially against chlorides and acids

• Diameter
• Up to 2500 mm or as specified

• Dimension (L*W*H)
• As per drawing or customer specification

• Finish Type
• Smooth, Bright, Shot Blasted or as per order

• Grade
• 316L

• Hardness
• 217 HB

• Heat Resistance
• Yes

• Material Composition %
• Refer to Chemical Composition

• Material Grade
• 316L

• Product Form
• Ring/Forged Ring

• Product Name

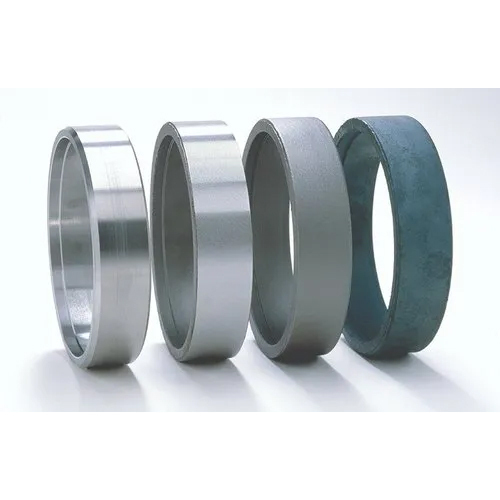

• Other, Stainless Steel 316L Forge Rings

• Recyclable
• Yes

• Shape
• Other, Ring

• Size
• Custom as per order

• Steel Product Type
• Other, Forged Rings

• Steel Standard
• Other, ASTM A182, AISI, DIN, EN, JIS

• Steel Type
• Other, Austenitic Stainless Steel

• Surface
• Machined, Polished or as required

• Temper
• Annealed

• Tensile Strength
• 515 MPa min

• Thickness
• Customizable

• Usage
• Heavy Duty Applications, High Strength Components

• Weight
• As per size specification

• Width
• Customizable as per requirement

• Application
• Other, Automotive, construction, machinery, process industries, power plants, aerospace

• Chemical Composition
• 18% Cr, 8% Ni, balance Fe

• Coating Type
• Uncoated

• Color
• Silver

• Composition
• Cr-Ni steel alloy

• Corrosion Resistant
• Excellent against many chemicals and atmospheric conditions

• Diameter
• As per specification, typically 50 mm to 1500 mm

• Dimension (L*W*H)
• As per order specification

• Finish Type
• Machined/Polished

• Grade
• 304

• Hardness
• Hardness (Brinell): 201 HB max

• Heat Resistance
• Yes

• Material Composition %
• Cr 18%, Ni 8%, C 0.08% max, Mn 2% max, Si 1% max

• Material Grade
• 304

• Product Form
• Forged Ring

• Product Name
• Other, Stainless Steel 304 Forge Rings

• Recyclable
• Yes

• Shape
• Other, Ring

• Size
• Customized

• Steel Product Type
• Other, Forge Ring

• Steel Standard
• Other, ASTM A182, ASTM A276, DIN 1.4301

• Steel Type
• Other, Austenitic Stainless Steel

• Surface
• Bright/Polished

• Temper
• Annealed

• Tensile Strength
• 515 MPa min

• Thickness
• Custom as per customer need

• Usage
• Flanges, bearings, valves, engineering components

• Weight
• Varies with size (approx. 1 kg to 100 kg per ring)

• Width
• Customizable as per requirement

• Application
• Other, Heavy machinery, power plants, engineering, bearings

• Chemical Composition
• Varies as per steel grade

• Coating Type
• Uncoated, anti-rust oil, or custom as needed

• Color
• Natural steel gray, black, or oxidation red (after forging)

• Composition
• Customized based on order/steel grade

• Corrosion Resistant
• Yes, if made from stainless steels or treated

• Diameter
• 100 mm to 2000 mm or custom sizes

• Dimension (L*W*H)
• Custom as per drawing/specification

• Finish Type
• Machined, Ground, or Plain

• Grade
• EN8, EN9, EN19, EN24, EN31, SS304, SS316, or as specified

• Hardness
• 30-60 HRC depending on steel and treatment

• Heat Resistance
• Yes

• Material Composition %
• Customized as per standard or request

• Material Grade
• As per client specification

• Product Form
• Forged Ring

• Product Name

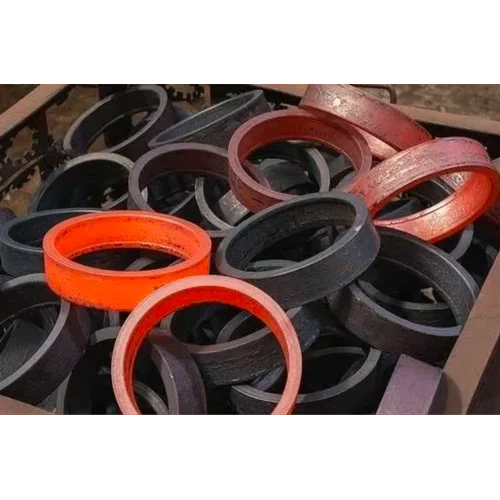

• Other, Round Forging Ring

• Recyclable
• Yes

• Shape
• Other, Round Ring

• Size
• Customized as per requirement

• Steel Product Type
• Other, Forged Ring

• Steel Standard
• Other, ASTM, DIN, EN, JIS, or per order

• Steel Type
• Other, Carbon Steel / Alloy Steel / Stainless Steel (options available)

• Surface
• Machined, Rough, Sandblasted, or as specified

• Temper
• Forged/Normalized

• Tensile Strength
• Depends on grade, ranges between 400-900 MPa

• Thickness
• Custom from 20mm up to 300mm or as required

• Usage
• Industrial equipment, mills, construction industry, etc.

• Weight
• Depends on size and grade

• Width
• Customizable as per requirement

• Application
• Other, Petrochemical, Offshore, Marine, Chemical Processing, Pressure Vessels

• Chemical Composition
• Optimized Duplex/Super Duplex Stainless Steel composition

• Coating Type
• Uncoated or passivated (request-based)

• Color
• Metallic grey

• Composition
• Cr, Ni, Mo, N; specific per grade

• Corrosion Resistant
• Excellent resistance to pitting and crevice corrosion

• Diameter
• Custom inner & outer diameters-up to 2000 mm

• Dimension (L*W*H)
• Custom dimensions available

• Finish Type
• Annealed and solution treated finish

• Grade
• Duplex 2205, 2507, or as specified

• Hardness
• 250 HB max (as per grade)

• Heat Resistance
• Yes

• Material Composition %
• Varies by grade-example 22% Cr, 5-7% Ni, 3% Mo, 0.18-0.22% N

• Material Grade
• Duplex/Super Duplex - 2205/2507/31803/32750, etc.

• Product Form
• Forged ring

• Product Name

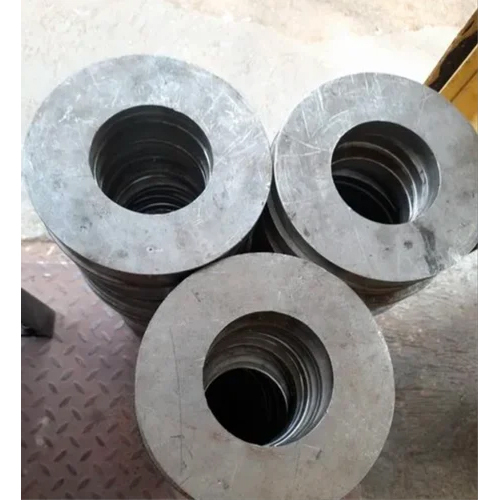

• Other, Duplex & Super Duplex Forging Ring With Annealing and Solutions

• Recyclable
• Yes

• Shape
• Other, Ring

• Size
• Standard & custom sizes

• Steel Product Type
• Other, Forged Ring

• Steel Standard
• Other, ASTM, ASME, DIN, JIS (upon request)

• Steel Type
• Other, Duplex Stainless Steel, Super Duplex Stainless Steel

• Surface
• Smooth, machined finish

• Temper
• Annealed and Solution Treated

• Tensile Strength
• Typically 620 MPa (Duplex 2205); Super Duplex up to 800 MPa

• Thickness
• Custom thickness as per project

• Usage
• High-stress mechanical & structural environments

• Weight
• As per size and grade specification

• Width
• Customizable as per requirement
