HASTELLOY PRODUCT

• Application
• Other, Welding, chemical processing, aerospace, marine, electronics, high-temperature service, corrosion-resistant components

• Chemical Composition
• Ni (54-62%), Mo (27-31%), Cr (4-7%), Fe (5%), Co (2.5%), Mn (1%), Si (0.08%), C (0.02%), W, V, Cu (trace)

• Coating Type
• Uncoated (bare wire), coating available upon request

• Color
• Silver / Metallic

• Composition
• Nickel, Molybdenum, Chromium, Iron (major components)

• Corrosion Resistant
• Excellent in oxidizing and reducing environments

• Diameter
• From 0.1 mm up to 6 mm (customizable)

• Dimension (L*W*H)
• Custom or coil specification

• Finish Type
• Bright / Polished

• Grade
• Hastelloy C-276 / C-22 / B-2 / X (as specified)

• Hardness
• Annealed: 80-95 HRB (varies by temper)

• Heat Resistance
• Yes

• Material Composition %
• Ni 57%, Mo 16%, Cr 15.5%, Fe 5%, W 4%, others (varies by grade)

• Material Grade
• Hastelloy C-276 (default) or as ordered

• Product Form

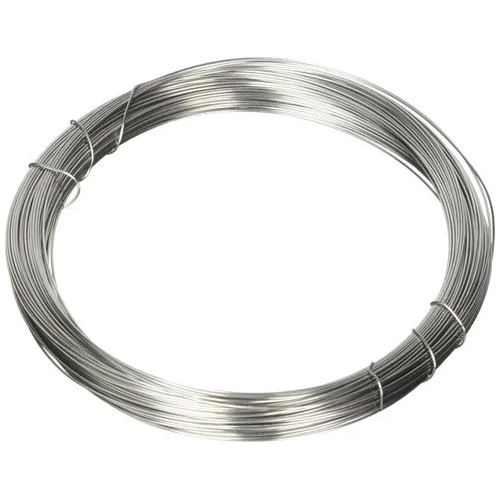

• Coiled wire

• Product Name
• Other, Hastelloy Wire

• Recyclable
• Yes

• Shape
• Other, Round wire

• Size
• Available in custom lengths/coils/diameters

• Steel Product Type
• Other, Industrial wire / Filler wire

• Steel Standard
• Other, ASTM B574 / ASTM B622 / ASME SB-622 (as applicable)

• Steel Type
• Other, Nickel-based superalloy

• Surface
• Bright / Matte finish

• Temper
• Annealed / Soft / Hard (as per requirement)

• Tensile Strength
• Typically 690 MPa (min) for C-276, varies by grade & temper

• Thickness
• Typical range: 0.1 mm - 6.0 mm

• Usage
• Welding filler, chemical handling, heat exchangers, springs, instrumentation

• Weight
• As per coil length and wire diameter

• Width
• Customizable (commonly 0.1 mm - 6 mm)

• Application
• Other, Chemical processing, Marine, Nuclear, Oil & Gas, Pharmaceutical industries

• Chemical Composition
• Nickel, Molybdenum, Chromium (specific percentages vary by grade)

• Coating Type
• Uncoated or as per requirement

• Color
• Silver/Grey metallic

• Composition
• Nickel-base superalloy

• Corrosion Resistant
• Yes, excellent in harsh environments

• Diameter
• Not applicable to sheet products

• Dimension (L*W*H)
• Custom dimensions available (e.g., 1000mm x 2000mm x thickness)

• Finish Type
• Mill finish, 2B, BA, polished as per requirement

• Grade
• Hastelloy C276, C22, B2, X; as specified by customer

• Hardness
• Rockwell B90 (typical)

• Heat Resistance
• Yes

• Material Composition %
• Nickel: 57% min, Molybdenum: 15-17%, Chromium: 14.5-16.5%, Iron: 4-7%, trace elements

• Material Grade
• Hastelloy (various grades available)

• Product Form

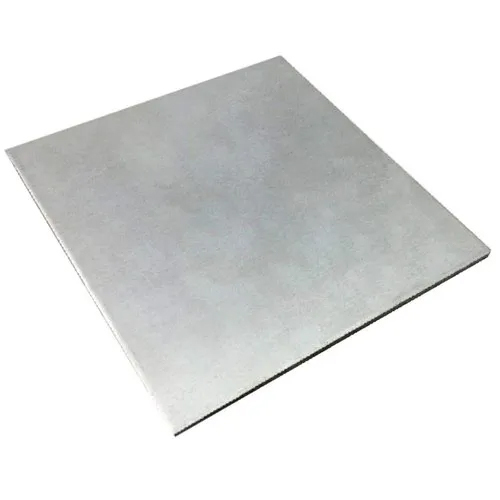

• Flat sheet/plate

• Product Name
• Other, HASTELLOY SHEET

• Recyclable
• Yes

• Shape
• Other, Sheet/Plate

• Size
• Custom sizes cut to order

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM B575, ASME SB575, or equivalent

• Steel Type
• Other, Nickel Alloy

• Surface
• Smooth, bright, or as per order

• Temper
• Annealed

• Tensile Strength
• 690 MPa min (for C276 grade)

• Thickness
• 0.5mm to 50mm (as required)

• Usage
• Fabrication, lining, structural, industrial usage

• Weight
• Varies with size and thickness

• Width
• Customizable as per requirement

• Application
• Other, Petrochemical, Chemical Processing, Marine, Pollution Control, Power, Aerospace, Pharmaceutical, Food Processing, Gas Handling

• Chemical Composition
• Nickel, Molybdenum, Chromium, Iron, Cobalt, Tungsten, Carbon (varies by grade)

• Coating Type
• Uncoated / Natural Finish

• Color
• Silver/Gray Metallic

• Composition
• Nickel 55-60%, Molybdenum 15-18%, Chromium 14.5-16.5%, Iron 4-7%, Cobalt max 2.5%, other elements

• Corrosion Resistant
• Excellent resistance to corrosion in harsh environments

• Diameter
• N/A for plate; applicable for round bars

• Dimension (L*W*H)
• Standard and custom sizes; e.g., 2440mm x 1220mm x 3mm

• Finish Type
• Smooth, Bright, Polished

• Grade
• Hastelloy C-276, C-22, B-2, X, G-30, etc.

• Hardness
• Approx. 200 HB (Brinell)

• Heat Resistance
• Yes

• Material Composition %
• Varies by grade; e.g., Ni 57%, Mo 16%, Cr 16%, Fe 5% (approx. for C-276)

• Material Grade
• Hastelloy C276 / C22 / B2 etc.

• Product Form

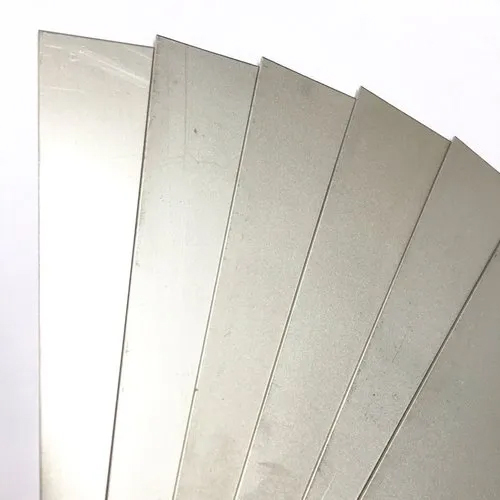

• Plate/Sheet

• Product Name
• Other, Hastelloy Plate

• Recyclable
• Yes

• Shape
• Other, Plate / Sheet

• Size
• Custom and standard; e.g., 2000mm x 1000mm, 2500mm x 1250mm

• Steel Product Type
• Other, Plate/Sheet

• Steel Standard
• Other, ASTM B575, ASME SB575

• Steel Type
• Other, Nickel-based Alloy

• Surface
• Bright, Polished, 2B, BA, No.1

• Temper
• Annealed

• Tensile Strength
• 690 MPa min (for C-276)

• Thickness
• 0.5mm to 50mm or as required

• Usage
• Used in high-temperature, high-corrosion industrial applications

• Weight
• Depends on thickness and dimensions

• Width
• Customizable, typically 1000mm, 1250mm, 1500mm, and above

• Application
• Other, Chemical processing, Petrochemical, Oil & Gas, Marine, Power Generation

• Chemical Composition
• Nickel, Molybdenum, Chromium, Iron (main elements); others per grade

• Coating Type
• Uncoated / Custom as required

• Color
• Metallic Silver

• Composition
• Nickel (52-60%), Molybdenum (13-17%), Chromium (14.5-16.5%), Iron (4-7%), others trace elements

• Corrosion Resistant
• Yes, excellent resistance to a wide range of chemical environments

• Diameter
• 6 mm to 323.9 mm (or as required)

• Dimension (L*W*H)
• As per specification (custom cut lengths available)

• Finish Type
• Polished / Matt / Custom

• Grade
• Hastelloy C276, C22, B2, etc.

• Hardness
• 150-200 HB (Brinell, varies by temper & grade)

• Heat Resistance
• Yes

• Material Composition %
• Heavy in Ni, with significant Mo and Cr; exact % depends on grade

• Material Grade
• C276, C22, B2, G30 & more

• Product Form

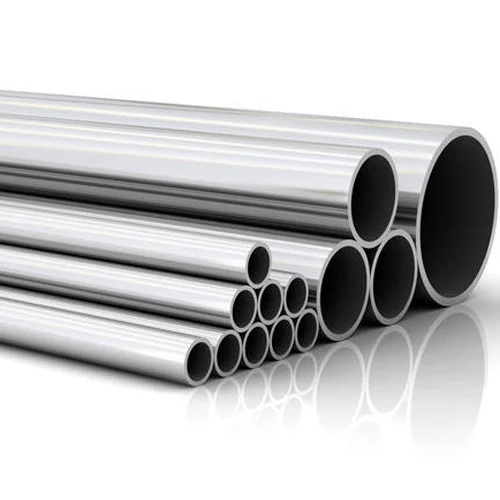

• Pipe / Tube

• Product Name
• Other, Hastelloy Pipe

• Recyclable
• Yes

• Shape
• Other, Round Pipe / Tube

• Size
• Customized as per requirement

• Steel Product Type
• Other, Pipe / Tube

• Steel Standard
• Other, ASTM B622, ASTM B619, ASTM B626, ASME, DIN, EN standards

• Steel Type
• Other, Nickel Alloy (Not traditional carbon steel)

• Surface
• Polished / Pickled / Bright Annealed

• Temper
• Annealed / Hardened

• Tensile Strength
• 690 MPa (min, for C276)

• Thickness
• Available from 1 mm up to required specification

• Usage
• Industrial piping, Chemical transfer, High-temperature service

• Weight
• Depends on size & length

• Width
• Customizable as per requirement

• Application
• Other, Chemical, Petrochemical, Offshore, Gas, Oil, Pharmaceutical industries

• Chemical Composition
• Nickel, Molybdenum, Chromium, Iron (differs as per Hastelloy grade)

• Coating Type
• None/Uncoated or as specified

• Color
• Metallic Grey

• Composition
• Nickel-based alloy

• Corrosion Resistant
• Yes, excellent resistance

• Diameter
• 1/2 to 48 or custom

• Dimension (L*W*H)
• Available in different dimensions as per standards

• Finish Type
• Machined/Polished

• Grade
• Hastelloy C276, C22, B2, X, G30, etc.

• Hardness
• Rockwell B90 (typical for C276)

• Heat Resistance
• Yes

• Material Composition %
• Exact percentages depend on grade; typical: Ni (55-60%), Mo (15-17%), Cr (14.5-16.5%), Fe (4-7%)

• Material Grade
• Hastelloy C276 / C22 / B2 / X / G30

• Product Form
• Flange

• Product Name
• Other, Hastelloy Flanges

• Recyclable
• Yes

• Shape
• Other, Round Flange

• Size
• Standard or as per customer requirements

• Steel Product Type
• Other, Industrial Flange

• Steel Standard
• Other, ASTM B564, ASME SB564

• Steel Type
• Other, Nickel Alloy (Hastelloy)

• Surface
• Bright, Polished, Pickled

• Temper
• Annealed

• Tensile Strength
• 690 MPa (typical for C276)

• Thickness
• 3mm to 50mm or as specified

• Usage
• Pipe connection, Pressure vessels, High corrosion environments

• Weight
• Depends on size and specification

• Width
• Customized as per requirement

• Application
• Other, Chemical processing, Petrochemical, Oil & Gas, Power generation, Pharmaceuticals

• Chemical Composition
• Nickel, Molybdenum, Chromium, Iron, Cobalt, Tungsten, Trace elements

• Coating Type
• Uncoated / Self-passivating

• Color
• Silver/Grey Metallic

• Composition
• Nickel 57%, Molybdenum 15-17%, Chromium 14.5-16.5%, Iron 5%

• Corrosion Resistant
• Excellent (high resistance to oxidizing and reducing environments)

• Diameter
• Custom / As per fitting specification

• Dimension (L*W*H)
• Available in various dimensions as per standard/specification

• Finish Type
• Mill Finish / Polished

• Grade
• C276, C22, C2000, B2, B3 (as per requirement)

• Hardness
• Rockwell B90 max (varies with grade)

• Heat Resistance
• Yes

• Material Composition %
• Nickel 57%, Molybdenum 16%, Chromium 15%, Iron 5%, others in trace

• Material Grade
• Hastelloy C276 / C22 / B2 / B3

• Product Form

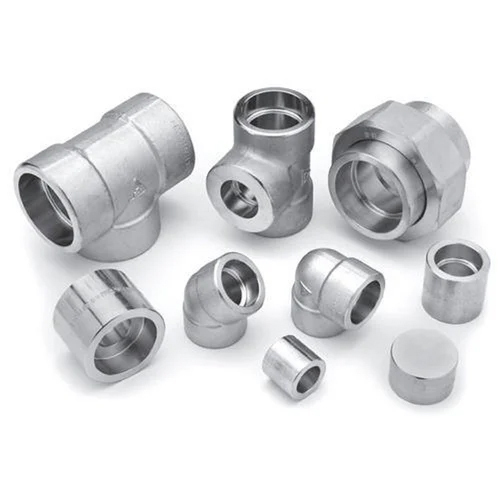

• Pipe Fitting

• Product Name
• Other, Hastelloy Fittings

• Recyclable
• Yes

• Shape
• Other, Elbow, Tee, Coupling, Cap, Union, Plug

• Size
• 1/8 NB to 4 NB and larger

• Steel Standard
• Other, ASTM B366, ASME SB366

• Steel Type
• Other, Not applicable (Nickel Alloy)

• Surface
• Smooth/Polished

• Temper
• Annealed / As required

• Tensile Strength
• Ultimate tensile strength 690 MPa min (C276)

• Thickness
• As per fitting size/standard

• Usage
• Used for piping connections in corrosive environments

• Weight
• Variable, depends on fitting size/type

• Width
• Custom as per order/application

• Application
• Other, Chemical processing, Power generation, Oil and gas industries, Pollution control, Marine applications

• Chemical Composition
• Nickel, Molybdenum, Chromium, Iron (balance), possible small amounts of C, Si, Mn, Co, W

• Coating Type
• Uncoated or as specified

• Color
• Metallic Silver

• Composition
• Nickel-based alloy

• Corrosion Resistant
• Excellent resistance to corrosive environments

• Diameter
• 6mm to 300mm, customizable

• Dimension (L*W*H)
• As required by client specification

• Finish Type
• Polished, Bright, or Black

• Grade
• C276, C22, B2, C4, or as specified

• Hardness
• Approx. 200-240 HB for annealed condition

• Heat Resistance
• Yes

• Material Composition %
• Varies by grade, e.g. C276: Ni (57%), Mo (15-17%), Cr (14.5-16.5%), Fe (4-7%)

• Material Grade
• Hastelloy (various grades available)

• Product Form

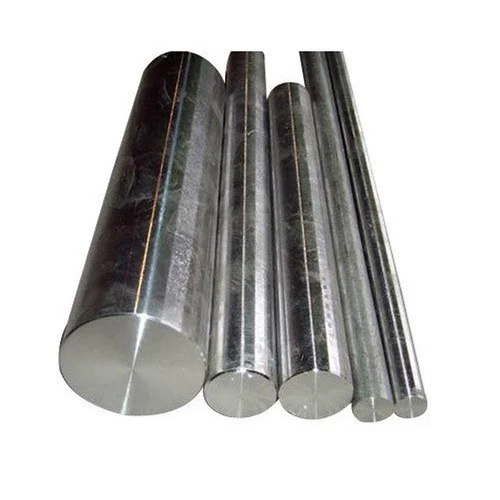

• Solid Round Bar

• Product Name
• Other, Hastelloy Round Bar

• Recyclable
• Yes

• Shape
• Other, Round Bar

• Size
• Custom cut to order

• Steel Product Type
• Other, Round Bar / Rod

• Steel Standard
• Other, ASTM B574 / ASME SB574

• Steel Type
• Other, Nickel Alloy (Hastelloy)

• Surface
• Bright, Peeled, Polished, or Black

• Temper
• Annealed or as specified

• Tensile Strength
• Typically 790 MPa min. for C276

• Thickness
• Diameter varies as per requirement

• Usage
• Industrial applications requiring high corrosion and heat resistance

• Weight
• Depends on diameter and length

• Width
• Customizable, as per requirement
