MARAGING PRODUCT

• Application
• Other, Aerospace components, Tooling, Missile parts, Defense, High-stress applications

• Chemical Composition
• Ni (18-19%), Co (8.5-9.5%), Mo (4.6-5.2%), Ti (0.4-0.8%), Al (0.05-0.15%), Fe (Balance)

• Coating Type
• None (as supplied), may be customized

• Color
• Metallic Grey

• Composition
• Nickel, Cobalt, Molybdenum, Titanium, Aluminum, Iron

• Corrosion Resistant
• Moderate

• Diameter
• 6 mm to 250 mm or as required

• Dimension (L*W*H)
• Standard lengths: 3 m / 6 m or as per requirement

• Finish Type
• Hot Rolled / Bright

• Grade
• 300

• Hardness
• 50-55 HRC (aged)

• Heat Resistance
• Yes

• Material Composition %
• Ni 18-19%, Co 8.5-9.5%, Mo 4.6-5.2%, Ti 0.4-0.8%, Al 0.05-0.15%, Fe balance

• Material Grade
• Maraging 300

• Product Form
• Rod/Bar

• Product Name
• Other, Maraging Steel 300 Rods

• Recyclable
• Yes

• Shape
• Other, Round Rods

• Size
• Custom sizes available

• Steel Product Type
• Other, Rods/Bars

• Steel Standard
• Other, ASTM A538 / AMS 6514

• Steel Type
• Other, Maraging Steel

• Surface
• Smooth / Hot Rolled / Machined

• Temper
• Aged / Solution Annealed

• Tensile Strength
• 2000-2100 MPa (after aging)

• Thickness
• As per requirement (commonly 6 mm to 250 mm dia)

• Usage
• Industrial, Aerospace, Tool & Die

• Weight
• Varies as per dimension and length

• Width
• Customizable as per requirement

• Application
• Other, Aerospace, defense, tooling, high-strength components

• Chemical Composition
• Nickel (18-19%), Cobalt (8.5-9.5%), Molybdenum (4.6-5.2%), Titanium (0.6-0.8%), Aluminum (0.1-0.15%), others

• Coating Type
• Uncoated (standard), optional coatings available

• Color
• Silver/Metallic

• Composition
• Nickel, cobalt, molybdenum, titanium, aluminum, iron

• Corrosion Resistant
• Moderate, improves with specific surface treatment

• Diameter
• Not applicable for sheet

• Dimension (L*W*H)
• Sheet: L (up to 6000 mm) x W (1000 to 2500 mm) x H (0.5 mm to 120 mm thickness)

• Finish Type
• Mill finish

• Grade
• C 300 / 1.2709

• Hardness
• 54 HRC (after aging)

• Heat Resistance
• Yes

• Material Composition %
• Ni 18-19%, Co 8.5-9.5%, Mo 4.6-5.2%, Ti 0.6-0.8%, Al 0.1-0.15%, Fe balance

• Material Grade
• C 300

• Product Form
• Plate/Sheet

• Product Name

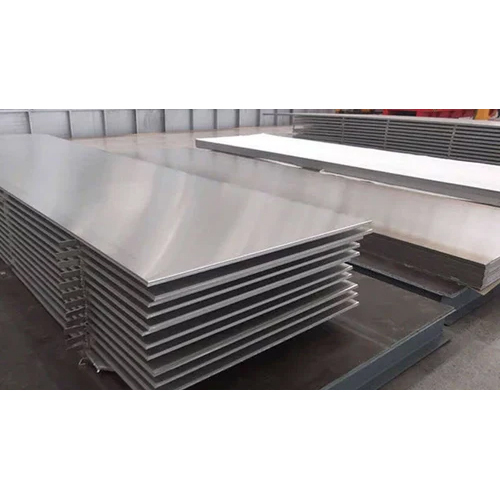

• Other, Maraging Steel C 300 Sheet

• Recyclable
• Yes

• Shape
• Other, Sheet

• Size
• Custom, per order

• Steel Product Type
• Other, Sheet/Plate

• Steel Standard
• Other, ASTM A579 / AMS 6514 / EN 10204

• Steel Type
• Other, Maraging Steel

• Surface
• Smooth, mill finish

• Temper
• Solution Annealed

• Tensile Strength
• 2050 MPa (after aging)

• Thickness
• 0.5 mm to 120 mm

• Usage
• Tooling, aircraft landing gear, missile parts

• Weight
• Varies by size, approx. 80 kg/m2 at 10 mm thickness

• Width
• 1000 mm to 2500 mm (customizable)

• Application
• Other, Aerospace, tooling, high-strength structural components, missile casings, automotive

• Chemical Composition
• Typical: Ni (18-19%), Co (8.5-9.5%), Mo (4.6-5.2%), Ti (0.4-0.8%), Al (0.05-0.15%), C (0.03%), Fe (balance)

• Coating Type
• Optional (uncoated, passivated, or coated)

• Color
• Metallic Silver/Grey

• Composition
• High-Nickel, Low-Carbon Alloy

• Corrosion Resistant
• Moderate, can be improved with coating

• Diameter
• N/A for sheets

• Dimension (L*W*H)
• Custom; Common sheet sizes (e.g., 2000mm x 1000mm x 5mm)

• Finish Type
• Precision Ground, Polished, or Mill Finish

• Grade
• 250

• Hardness
• Approx. 50 HRC (after aging)

• Heat Resistance
• Yes

• Material Composition %
• Fe (Balance), Ni 18-19, Co 8.5-9.5, Mo 4.6-5.2, Ti 0.4-0.8, Al 0.05-0.15, C 0.03

• Material Grade
• Maraging 250

• Product Form
• Sheet

• Product Name

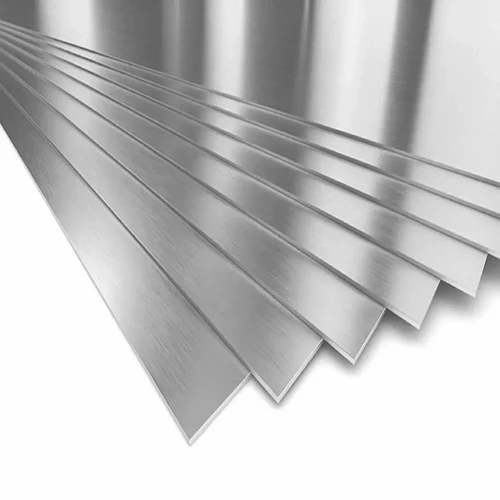

• Other, Maraging Steel 250 Sheet

• Recyclable
• Yes

• Shape
• Other, Sheet/Flat Plate

• Size
• Custom sizes available

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, AMS 6512, ASTM A538, UNS K92890

• Steel Type
• Other, Maraging Steel

• Surface
• Bright, Pickled, or Custom Finish

• Temper
• Aged (precipitation hardened)

• Tensile Strength
• Approx. 2400 MPa (348 ksi)

• Thickness
• Customizable (commonly 0.5mm to 50mm)

• Usage
• Aerospace, die and tool, defense, sports equipment

• Weight
• Depends on dimensions; approx. 8.1 g/cm3 density

• Width
• Customizable (commonly 1000mm to 2000mm)

• Application
• Other, Aerospace, Defense, Tooling, Molds, Nuclear, High Performance Engineering Applications

• Chemical Composition
• Ni 17-19%, Co 8-10%, Mo 4.5-5.2%, Ti 0.15-0.20%, Al 0.10-0.15%, Balance Fe

• Coating Type
• None / As per request

• Color
• Metallic Grey

• Composition
• Nickel, Cobalt, Molybdenum, Titanium, Aluminum, Iron

• Corrosion Resistant
• Good

• Diameter
• 10 mm to 300 mm or as specified

• Dimension (L*W*H)
• Custom Length x Diameter; Common length: 3-6 meters

• Finish Type
• Bright / Peeled / Polished

• Grade
• 18Ni(250), 18Ni(300), 18Ni(350) (other grades on request)

• Hardness
• Up to 55 HRC depending on grade and heat treatment

• Heat Resistance
• Yes

• Material Composition %
• Ni 18%, Co 9%, Mo 5%, Fe Bal.

• Material Grade
• 18Ni(300) or as required

• Product Form
• Solid Bar

• Product Name

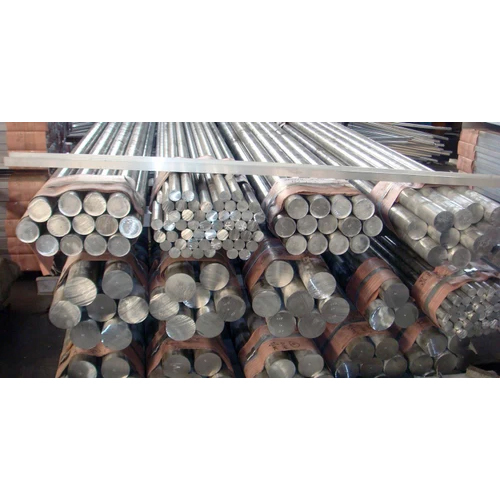

• Other, Maraging Steel Bars

• Recyclable
• Yes

• Shape
• Other, Round Bar

• Size
• Standard & Custom sizes available

• Steel Product Type
• Other, Bar

• Steel Standard
• Other, ASTM A579, AMS 6512, EN 10088

• Steel Type
• Other, Maraging Steel

• Surface
• Polished / Bright / Peeled

• Temper
• Aged / Solution Annealed

• Tensile Strength
• Up to 2000 MPa (290 ksi) depending on grade

• Thickness
• Diameter range typically 10 mm to 300 mm

• Usage
• Engineering, Tool & Die, Aerospace, Missile, Structural Components

• Weight
• Varies as per size and length

• Width
• Customizable as per requirement

• Application
• Other, Tooling, Dies, Aerospace, Defense, High-Strength Components

• Chemical Composition
• Ni 18.5%, Co 8.5%, Mo 4.8%, Ti 0.6%, Al 0.1%, Fe Balance

• Coating Type
• None (as supplied); Coated available on request

• Color
• Metallic Grey

• Composition
• Nickel, Cobalt, Molybdenum, Titanium, Aluminum, Iron

• Corrosion Resistant
• Moderate

• Diameter
• 6mm to 350mm or as specified

• Dimension (L*W*H)
• Custom lengths/diameters as required

• Finish Type
• Bright/Polished

• Grade
• C300 / 18Ni(300)

• Hardness
• HRC 50-55 (after aging)

• Heat Resistance
• Yes

• Material Composition %
• Ni 18.5, Co 8.5, Mo 4.8, Ti 0.6, Al 0.1, Fe Balance

• Material Grade
• C300

• Product Form
• Solid Bar

• Product Name

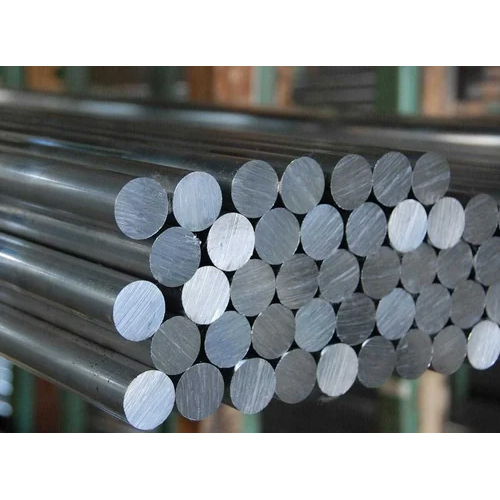

• Other, Maraging C300 Steel Round Bar

• Recyclable
• Yes

• Shape
• Other, Round Bar

• Size
• Custom/varies (length and diameter as specified)

• Steel Product Type
• Other, Bar/Rod

• Steel Standard
• Other, ASTM A579, AMS 6514, UNS K93120

• Steel Type
• Other, Maraging Steel

• Surface
• Bright, Polished, Peeled or Turned

• Temper
• Solution Annealed / Aged

• Tensile Strength
• Ultimate up to 2068 MPa (300 ksi)

• Thickness
• Depends on diameter (typically 6mm-350mm)

• Usage
• High-stress engineering, engine parts, dies, tool components

• Weight
• Depends on size and length

• Width
• Custom/varies as per requirement

• Application
• Other, Aerospace, Tooling, Nuclear Engineering, Automotive, Defense

• Chemical Composition
• 17-19% Nickel, 8.5-9.5% Cobalt, 4.5-5.2% Molybdenum, <0.15% Titanium, Balance Iron

• Coating Type
• Uncoated (can be coated as required)

• Color
• Metallic Grey

• Composition
• Fe-Ni-Co-Mo alloy, Precipitation Hardened

• Corrosion Resistant
• Moderately corrosion resistant

• Dimension (L*W*H)
• Custom as per order

• Finish Type
• Mill Finish/Smooth

• Grade
• C 300 (also known as 1.2709 or UNS K93120)

• Hardness
• 48-52 HRC (after aging)

• Heat Resistance
• Yes

• Material Composition %
• Ni 18-19, Co 8.5-9.5, Mo 4.5-5.2, Ti <0.15, Fe Balance

• Material Grade
• C 300

• Product Form
• Flat Sheet

• Product Name
• Other, Maraging Steel C 300 Sheet

• Recyclable
• Yes

• Shape
• Other, Sheet

• Size
• Customizable

• Steel Product Type
• Other, Sheet/Plate

• Steel Standard
• Other, ASTM A579, AMS 6514, DIN 1.2709

• Steel Type
• Other, Maraging Steel

• Surface
• Bright/Polished/Matte (based on finish)

• Temper
• Annealed or As Requested

• Tensile Strength
• Up to 2060 MPa (after aging)

• Thickness
• 4mm - 100mm (as per requirement)

• Usage
• Molds, Dies, Aircraft Structures, Engine Components

• Weight
• Depends on sheet size and thickness

• Width
• Customizable (standard widths on request)
