NIMONIC PRODUCT

• Application
• Other, Aerospace, Gas Turbine, Power Plant, Heat Treatment, Furnace, Chemical Processing

• Chemical Composition
• Ni 72%, Cr 19-21%, Ti 2.0-2.7%, Al 1.0-1.8%, Fe 3%, C 0.1%, Si 1.0%, Mn 1.0%, Cu 0.2%, S 0.015%

• Coating Type
• None/Uncoated

• Color
• Silver/Grey Metallic

• Composition
• Nickel-Chromium alloy with controlled Titanium and Aluminum

• Corrosion Resistant
• Excellent

• Diameter
• 8 mm to 100 mm (or as specified)

• Dimension (L*W*H)
• Custom/As required

• Finish Type
• Polished, Peeled, Ground

• Grade
• Nimonic 80A

• Hardness
• 230-270 HB

• Heat Resistance
• Yes

• Material Composition %
• Nickel 72%, Chromium 20%, Titanium 2.5%, Aluminum 1.4%

• Material Grade
• Nimonic 80A

• Product Form
• Bar/Rod

• Product Name

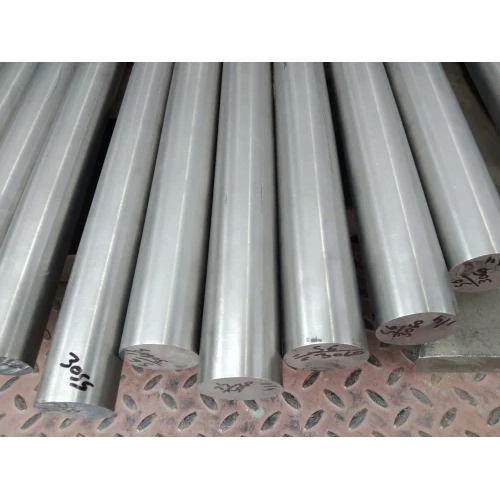

• Other, Nimonic 80A Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom/As required

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, BS HR1, BS 3076 NA20, ASTM B163, B366, B167, B169, B333

• Steel Type
• Other, Nickel-Based Superalloy

• Surface
• Bright, Polished, Peeled, Ground

• Temper
• Solution Treated/Aged

• Tensile Strength
• 800-1100 MPa

• Thickness
• As required / Diameter specified

• Usage
• High-temperature engineering applications

• Weight
• Varies as per dimension

• Width
• Custom/As required

• Application
• Other, Aerospace, Gas Turbines, Petrochemical, Heat Treatment, Industrial Furnaces

• Chemical Composition
• Ni 78%, Cr 20%, Fe 3%, Ti 0.3% (approx.)

• Coating Type
• Uncoated / As requested

• Color
• Silver

• Composition
• Nickel 78%, Chromium 20%, balance Titanium and Iron

• Corrosion Resistant
• Yes, Good Resistance

• Diameter
• 0.1 mm to 6 mm

• Dimension (L*W*H)
• As per spool size / customer specifications

• Finish Type
• Smooth / Bright

• Grade
• Nimonic 75

• Hardness
• 170-220 HB (Brinell)

• Heat Resistance
• Yes

• Material Composition %
• Nickel 78%, Chromium 20%, Titanium 0.3%, Iron 3%

• Material Grade
• Nimonic 75

• Product Form
• Wire on Spool

• Product Name

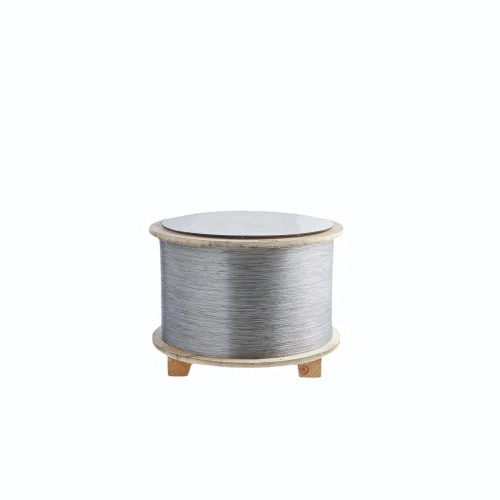

• Other, Nimonic 75 Wire

• Recyclable
• Yes

• Shape
• Wire

• Size
• Standard and custom sizes

• Steel Product Type
• Other, Wire

• Steel Standard
• Other, ASTM B637

• Steel Type
• Other, Nickel-Chromium Alloy

• Surface
• Bright / Polished

• Temper
• Annealed or Hard

• Tensile Strength
• 700-900 MPa

• Thickness
• 0.1 mm to 6 mm (custom supplied)

• Usage
• High-temperature and corrosion-prone environments

• Weight
• Varies as per wire gauge and spool

• Width
• Customizable as per requirement

• Application
• Other, High temperature applications, Gas turbines, Aerospace, Power generation, Engine Components

• Chemical Composition
• Nickel, Chromium, Titanium, Aluminium, and other trace elements (varies by grade, e.g. Nimonic 75, 80A, 90, etc.)

• Coating Type
• Uncoated / As supplied

• Color
• Silver / Metallic Grey

• Composition
• Nickel 70-80%, Chromium 15-20%, Aluminium, Titanium, Fe, C, Mn, Si (in specified % per grade)

• Corrosion Resistant
• Excellent, high resistance to oxidation and corrosion at elevated temperatures

• Diameter
• 5 mm to 200 mm (custom sizes available)

• Dimension (L*W*H)
• Custom sizes available; standard lengths (e.g. 3m, 6m or as required)

• Finish Type
• Smooth / Peeled / Polished

• Grade
• Nimonic 75, Nimonic 80A, Nimonic 90 (and others depending on requirement)

• Hardness
• Typical 200-250 HB (Brinell)

• Heat Resistance
• Yes

• Material Composition %
• Nickel ~76%, Chromium ~20%, remainder balance alloy elements (typical for Nimonic 80A)

• Material Grade
• Various Nimonic Grades (75, 80A, 90, etc.)

• Product Form
• Rods / Bars

• Product Name

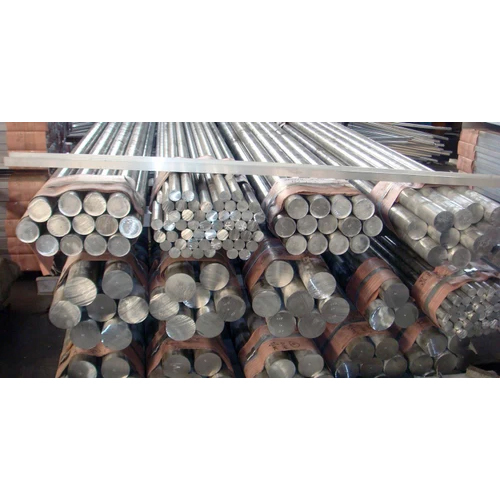

• Other, NIMONIC RODS

• Recyclable
• Yes

• Shape
• Other, Round Rods

• Size
• Custom / Standard sizes available

• Steel Product Type
• Other, Industrial Rods / Bars

• Steel Standard
• Other, ASTM B637, BS HR 1, ISO, or as specified

• Steel Type
• Other, Nickel-based superalloy

• Surface
• Bright / Pickled / Polished / Peeled

• Temper
• Annealed / Solution Treated

• Tensile Strength
• Up to 1100 MPa (varies by grade)

• Thickness
• Diameter based (varies per size)

• Usage
• Aerospace, Gas Turbine, Power Plant, Petrochemical, Industrial Heat Resistant Components

• Weight
• Varies as per size and length

• Application
• Other, Gas turbine components, Aerospace, Chemical processing, Furnace parts

• Chemical Composition
• Nickel, Chromium, Cobalt, Titanium, Aluminum (Varies as per grade)

• Coating Type
• Uncoated / Coated options available

• Color
• Silver / Metallic Gray

• Composition
• Nickel 72-78%, Chromium 15-21%, Cobalt, Titanium, Aluminum

• Corrosion Resistant
• Excellent resistance to oxidation and corrosion

• Diameter
• Not applicable for sheets

• Dimension (L*W*H)
• Available in variable lengths, widths, and thicknesses as per order

• Finish Type
• Matte / Glossy / Polished

• Grade
• Nimonic 75, Nimonic 80A, Nimonic 90, etc.

• Hardness
• 180-380 HB (varies by temper and grade)

• Heat Resistance
• Yes

• Material Composition %
• Nickel: 72-78%, Chromium: 15-21%, others as per grade

• Material Grade
• Industrial Grade

• Product Form
• Flat Sheet / Plate

• Product Name

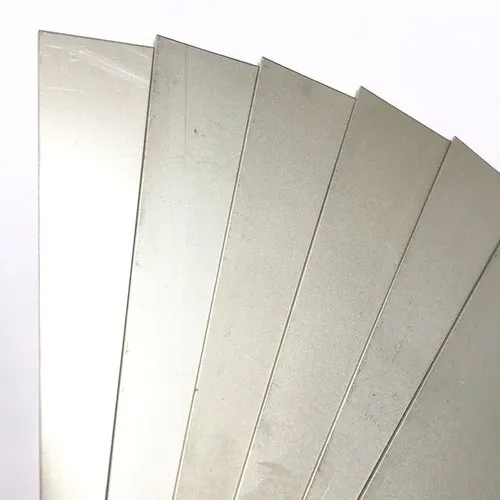

• Other, Nimonic Sheet

• Recyclable
• Yes

• Shape
• Other, Sheet / Plate

• Size
• Standard and custom sizes available

• Steel Product Type
• Other, Sheets / Plates

• Steel Standard
• Other, ASTM, ASME, UNS N06075/N07080

• Steel Type
• Other, Superalloy (Nickel-based)

• Surface
• Bright / Polished / Mill Finish

• Temper
• Annealed / Hardened

• Tensile Strength
• 900 MPa - 1200 MPa (depends on grade)

• Thickness
• 0.1 mm - 50 mm (customizable)

• Usage
• Turbine Blades, Engine Components, Heat Exchangers, Chemical Equipment

• Weight
• Varies as per size and thickness

• Width
• Customizable as per requirement
