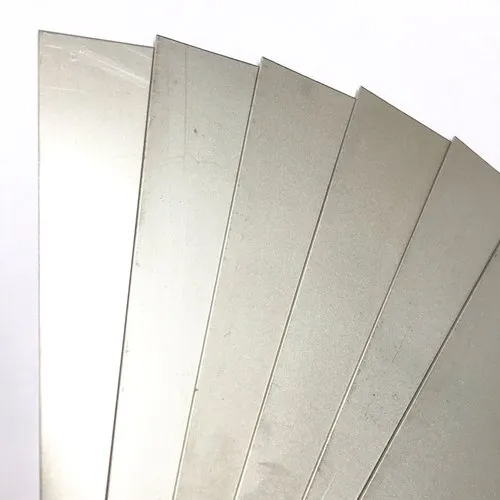

Titanium plate

Name: Titanium plate
Brand: MANIBHADRA METALS
Price: 2500 INR
Availability: InStock

Price 2500 INR/ Kilograms

Get a Price/Quote

MOQ : 5 Kilograms

Titanium plate Specification

Diameter
Not applicable (for plates).

Heat Resistance
Yes

Material Composition %
Depends on grade, typically Ti: 99.2% (CP), Ti: 90% Al: 6% V: 4% (Gr5)

Chemical Composition
Primary Ti (Titanium), with possible alloying elements (Al, V, Mo, Fe, etc. depending on grade)

Tensile Strength
240 MPa (CP Gr1), up to 950 MPa (Ti-6Al-4V)

Size
Standard or custom cut to requirements

Width
Customizable (commonly 1000mm, 1220mm, 1500mm, 2000mm)

Recyclable
Yes, 100%

Product Form
Plate / Sheet

Temper
Annealed / Hard / as per requirement

Coating Type
Usually uncoated; can be coated on request

Hardness
160-360 HV depending on grade and condition

Corrosion Resistant
Excellent, especially in seawater and aggressive environments

Product Name
Titanium Plate

Steel Type
Non-ferrous (Titanium)

Steel Product Type
Plate / Sheet

Grade
GR1, GR2, GR5 (Ti-6Al-4V), GR7, GR9, etc.

Thickness
0.5mm to 100mm or as specified

Shape
Plate / Sheet

Steel Standard
ASTM B265, AMS 4911, ASTM F136, JIS H4600

Surface
Pickled, Polished, Hot Rolled, Cold Rolled

Composition
99.2% min Ti (for CP grades), plus alloying elements for specific grades

Application
Aerospace, Chemical Processing, Medical Implants, Marine, Automotive, Power Generation

Dimension (L*W*H)
Custom sizes; most common: 1000x2000mm or 1220x2440mm; thickness per specification

Weight
Varies as per size and thickness (density of titanium ~4.51 g/cm3)

Color
Silver-Grey metallic

Material Grade
Commercially Pure (CP) Ti, Ti-6Al-4V, etc.

Finish Type
Hot Rolled, Cold Rolled, Polished, Pickled

Usage
Used in high-strength, lightweight, and corrosion-resistant applications

Electrical Conductivity
3.1 x 10^6 S/m (at 20C)

MOQ (Minimum Order Quantity)
As specified by supplier

Melting Point
Approximately 1668C (3034F)

Thermal Conductivity
~21.9 W/(mK) at 25C

Modulus of Elasticity
~105 GPa

Elongation at Break
~20% (varies by grade)

Density
4.51 g/cm3

Lead Time
Ready stock or 2-6 weeks based on order size

Magnetic Properties
Non-magnetic

Packing
Standard export seaworthy packing, wooden case

Titanium plate Trade Information

Minimum Order Quantity
5 Kilograms

Supply Ability
1000 Kilograms Per Month

Delivery Time
3 Days

Titanium plate About

Reserve your access to top-tier engineering solutions with our Titanium Plate-manufactured in India for elite performance across aerospace, marine, medical, and chemical sectors. Boasting unparalleled corrosion resistance, a robust tensile strength range (240-950 MPa), and exceptional heat resilience up to 400C, these plates offer enlightened solutions for high-strength, lightweight projects. Each plate, customizable in size and finish (hot rolled, cold rolled, polished, pickled), meets esteemed standards: ASTM B265, AMS 4911, and more. Available for immediate dispatch or rapid lead times. Seize this sale for uncompromising quality and reliability.

Features and Application Versatility of Titanium Plate

Our Titanium Plates stand out with exceptional mechanical properties-high tensile strength, impressive elongation, and non-magnetic nature. Ideal for advanced machinery, chemical plants, medical implants, and marine constructions, these plates thrive in corrosive and high-temperature environments. You gain a choice of surfaces-pickled, polished, hot or cold rolled-plus custom dimensions for tailored solutions. Their remarkable durability, lightweight profile, and 100% recyclability make them the top pick for engineers demanding resilient, eco-conscious materials in mission-critical applications.

FOB Port, Supply Details, and Samples of Titanium Plate

With Packing & Dispatch managed through robust, seaworthy wooden cases, each Titanium Plate is meticulously prepared for global shipment. Our main FOB ports are in India; freight is efficiently coordinated for rapid deliveries. Ready stock enables swift shipping, while larger orders are accommodated within 2-6 weeks. Generous supply ability assures market-leading volumes, and samples are available upon request, ensuring you experience top product quality firsthand before confirming your bulk order.

FAQ's of Titanium plate:

Q: How does the Titanium Plate perform in corrosive environments?

A: The Titanium Plate exhibits unparalleled resistance to corrosion, especially in seawater and aggressive chemical settings, making it highly suitable for marine, chemical, and process industry applications.

Q: What are the main applications of Titanium Plate?

A: Titanium Plates are widely used in aerospace, marine engineering, medical implants, automotive parts, chemical processing, and power generation due to their high strength-to-weight ratio and resistance to high temperatures and oxidation.

Q: When can I expect delivery after placing an order?

A: For in-stock items, dispatch is immediate. For larger or customized orders, the typical lead time ranges from 2-6 weeks, depending on the size and specifications required.

Q: Where are the Titanium Plates manufactured and shipped from?

A: These Titanium Plates are manufactured and shipped from India, with primary FOB ports facilitating prompt and secure international freight.

Q: What are the customization options for these Titanium Plates?

A: You can specify thickness (0.5-100mm), width (standard or up to 2000mm), length, and surface finish (pickled, polished, hot/cold rolled); both commercial pure and alloyed grades are available per your application requirements.

Q: How is the packing done for export shipments?

A: Titanium Plates are packaged in standard export-quality, seaworthy wooden cases to ensure protection from damage during transit and handling, meeting international logistics standards.
