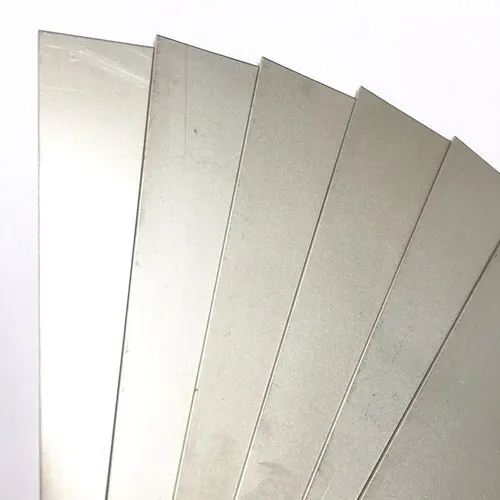

MONEL PLATE

Name: MONEL PLATE
Brand: MANIBHADRA METALS
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Kilograms

Get a Price/Quote

MOQ : 5 Kilograms

MONEL PLATE Specification

Width
Customized, as per requirement

Coating Type
None (self-passivating alloy)

Diameter
Not applicable (plate form)

Temper
Annealed

Material Composition %
Nickel 63%, Copper 28-34%, traces of Iron, Carbon, Manganese

Heat Resistance
Yes

Product Form
Plate / Sheet

Hardness
60-80 HRB (annealed)

Size
Custom cut to order

Corrosion Resistant
Excellent, especially in seawater & chemical environments

Chemical Composition
Nickel (63% minimum), Copper (28-34%), Iron (2.5% maximum), Manganese (2% maximum), Carbon (0.3% maximum)

Tensile Strength
480 MPa (Monel 400, annealed)

Recyclable
Yes

Product Name
Monel Plate

Steel Type
Non-ferrous (Nickel-Copper Alloy)

Steel Product Type
Industrial Metal Plate

Grade
Monel 400, Monel K500 (others available)

Thickness
0.5 mm to 50 mm

Shape
Plate/Sheet

Steel Standard
ASTM B127, ASME SB127

Surface
Smooth / Polished

Composition
Nickel-Copper alloy

Application
Marine engineering, Chemical and Hydrocarbon processing, Heat exchangers, Valves, Pumps, Oil and Gas Industry, Power Generation

Dimension (L*W*H)
Custom sizes; Typical thickness: 0.5 mm to 50 mm

Weight
Varies with size and thickness

Color
Silver / Metallic Grey

Material Grade
Monel 400 / K500

Finish Type
Hot/Cold Rolled, Polished

Usage
Heavy engineering, Oil & Gas, Power Plants

Machinability
Good, but work-hardens rapidly

Delivery Condition
Annealed and Pickled

Workability
Excellent, suitable for fabrication

Melting Point
1300C to 1390C

Compliance Standards
ASTM, ASME, DIN, JIS, EN

Elongation
35% (in 50 mm)

Magnetic Properties
Slightly magnetic at room temperature

Lead Time
7-30 days depending on size and quantity

Packaging Type
Standard Export Packing / Wooden Case

Density
8.80 g/cm3

MONEL PLATE Trade Information

Minimum Order Quantity
5 Kilograms

Supply Ability
1000 Kilograms Per Month

Delivery Time
3 Days

MONEL PLATE About

Get the kingly performance and sublime reliability of the famed MONEL PLATE, a hot deal for industrial giants seeking excellence. Highlighted by its non-ferrous Nickel-Copper alloy composition (minimum 63% Nickel, 28-34% Copper), this plate boasts stellar corrosion resistance, supreme machinability, and an impressive density of 8.80 g/cm3. With elongation of 35% over 50mm, it presents excellent workability and is ideal for marine engineering, power generation, and chemical processing. Delivered in an annealed and pickled state, you receive customizable sizes, widths, and thicknesses (0.5-50mm), perfectly packaged for export-an absolute essential for ambitious projects.

MONEL PLATE: Exceptional Usage & Application Features

MONEL PLATE is highly valued in demanding environments such as marine engineering, heat exchangers, oil & gas, and power plants, thanks to its kingly corrosion endurance and sublime heat resistance up to 537C. Its famed machinability and excellent workability make it suitable for fabrication and custom projects. Other features include good elongation (35%), customizable sizes, self-passivating surfaces, and high tensile strength, positioning MONEL PLATE as a superior choice for structural, chemical, and hydrocarbon processing applications.

Shipping, Samples, and Handover Timelines for MONEL PLATE

When you secure your MONEL PLATE order with us, handover happens via major ports in India, optimized for both export and domestic markets. Sample availability is provided on request to let you estimate product suitability prior to bulk commitment. Typical delivery time ranges from 7 to 30 days, depending on dimensions and quantity, reflecting our commitment to rapid dispatch and customer assurance for each tailored order.

FAQ's of MONEL PLATE:

Q: How does the MONEL PLATE perform in seawater and chemical environments?

A: MONEL PLATE delivers exceptional corrosion resistance in seawater and multiple chemical environments, making it a preferred material in marine and process industries.

Q: What is the standard delivery process for MONEL PLATE orders?

A: Orders are handed over through major Indian ports, with standard export packing in wooden cases. Delivery timelines typically range from 7 to 30 days based on size and quantity.

Q: Where can MONEL PLATE be used most effectively?

A: MONEL PLATE is most effective in marine engineering, oil and gas, hydrocarbon processing, power generation, pumps, and valves due to its strength and superior resistance to corrosion and heat.

Q: When is sample availability possible before placing a bulk order?

A: Samples are available upon request, allowing evaluation before a larger commitment and ensuring the product fits your project or application needs.

Q: What is the key benefit of choosing MONEL PLATE for industrial use?

A: It offers sublime machinability, remarkable elongation, and a self-passivating surface, providing excellent durability and reliability even in demanding conditions.

Q: How does the customization process work for MONEL PLATE dimensions?

A: Customers can specify dimensions, width, thickness, and surface finish as per project requirements. The plates are then manufactured and tailored according to these specifications.
